_ATM Series - LCD Touch Screen
Touch Screen

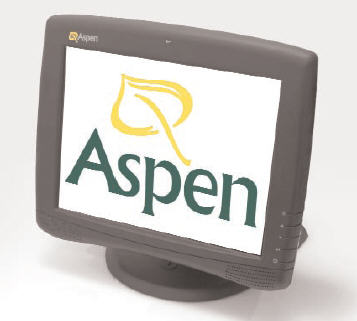

The ATM Series are feature rich LCD monitors with 5-wire Resistive Touchscreen. Designed and optimise for touch, these displays meet the performance demands of most touchscreen applications including Point Of Sale or Unattended Counter applications, where a small and solid mounted touch monitor is required.

Features

  • 12.1", 15" or 17" TFT LCD Panel Options
  • 5-Wire Resistive Touch Screen with Dual Interface (USB and Serial)
  • Auto-Sensing Brightness Adjustment for the best performance in changing light conditions
  • On Screen Display (OSD) for display setup, with vandal-resistant lockable controls
  • One-click access to Brightness, Audio Mute, and Video Auto-Adjust functions
  • State-sensing, lockable power switch prevents display from being turned off by vandals, and restores operation after AC power is interrupted
  • Variety of VESA-compatible mounting options
  • Top or bottom access stand lockdown for stable countertop mounting
  • KensingtonŽ lock connection on touchmonitor chassis for best public access security
  • Cable management access through display base and bottom
  • Touchscreen has high performance wedge seal for best contamination rejection in harsh environments
  • Two high performance baffled loudspeakers with 1W+1W audio amplifiers and electronic volume controls
  • Available in Dark Gray/Black or White Colors
  • Optional 3 Track Magnetic Card Reader
  • Optional 2x20 VFD Customer Display with dual axis tilt/swivel
  • 36 Months Warranty
Specifications
Model: ATM-123 ATM-152 ATM-173
Physical Characteristics
Width 315 mm 394 mm 418 mm
Height 292 mm 352 mm 400 mm
Depth 210 mm 210 mm 267 mm
Weight 5.0 Kg 7.3 Kg 9.0 Kg
Environmental Characteristics
Operating Temperature 10 to 60°C 10 to 40°C 0 to 50°C
Storage Temperature -20 to 60°C
Operating Humidity 20 to 80% (non-condensing)
Electrical
Power Source
External Adaptor		 12V/DC, 3.5A
Operating 30W Max. 30W Max. 30W Max.
Standby 5W 5W 4W
Display Panel
Viewing Area 12.1" 15.1" 17.1"
Native Resolution 800 x 600 1024 x 768 1280 x 1024
Colours 16.2 Million
Brightness 320 nit200 nit240 nit
Response Time 25 m/sec
Viewing Angle 130° H x 100° V 120° H x 105° V 140° H x 130° V
Touch Panel 5-wire Resistive
Options
3 Track Magnetic Card Reader Right Side Mounted
Customer Display 2 x 20 Character VFD
Rear Top Mounted
VESA Mounting 2 75 mm VESA Mount Options

Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] ATM 12.1" Series - White
9-7067-010-4
9-7067-011-1
9-7067-012-8
[B] ATM 12.1" Series - Black
9-7067-020-3
9-7067-021-0
9-7067-022-7
[C] ATM 15" Series - White
9-7067-030-2
9-7067-031-9
9-7067-032-6
[D] ATM 15" Series - Black
9-7067-040-1
9-7067-041-8
9-7067-042-5
[E] ATM 17" Series - White
9-7067-050-0
9-7067-051-7
9-7067-052-4
[F] ATM 17" Series - Black
9-7067-060-9
9-7067-061-6
9-7067-062-3
VESA Mount Brackets
